Engineered technologies for demanding applications
About DanaDana is a global provider of drivetrain, e-propulsion and fluid-power technologies, with solutions spanning traditional and emerging power sources. Its current product portfolio includes drivetrain systems, e-propulsion technologies and hydraulic solutions.
For off-highway applications, Dana's technology portfolio has been used across construction, mining, material handling and other demanding equipment environments, with solutions developed to support machine performance, efficiency and reliability.
Technology built around performance and durability
Why DanaDana's drivetrain and motion technologies have been developed for demanding mobile equipment environments, including construction, mining and material handling.
Dana's portfolio spans drivetrain and propulsion technologies, allowing solutions to be developed around different vehicle power sources and application requirements.
Dana has developed technologies supporting conventional, hybrid and electric powertrains, including electric drive systems, motors and inverters.
Complete drivetrain solution
Product portfolioSpicer axles, transmissions, driveshafts and Torque-Hub™ drives, and Graziano synchronizers and powershift clutches — pick a category to see the range, and open a product for its models and features.
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 3
- Range
- P71, P72, P73
Features
- Designed for compact utility tractors from 19 to 41 kW (25 to 55 hp)
- Increased ground clearance, enhanced traction and performance
- Smooth turning capability
- Suitable for all terrain application
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 27
- Range
- 109, 111, 112, 112 HD, 113, 114, 115, 116, 123, 125, 126, 137, 138, 139, 144, 145, 147, 17D, 182, 183, 192, 193, 194, 20D, 211, 212, 53R
Features
- Different brake options possible
- Multiple ratios available
- Heavy duty, proven technology
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 12
- Range
- 141, 162, 163, 211, 212, 212 HD, 213, 214, 223, 246, 262, 263
Lorem ipsum dolor sit amet
Features
- Multiple configurations available
- Wide range of ratios
- Suitable for conventional or electric driveline
- Deliver maximum performance and offer easy, low-cost service
- Spicer® Smart Suite™ ILMS (Intelligent Load Monitoring System) available
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 2
- Range
- N07, N09
Features
- Designed for combine up to 35 tons gross weight
- Modular concept, two or three speeds Shift on Fly
- Stand-still shifting option available
- Integrated Service and SAHR Wet Brake “self-adjust”
- Transit speed up to 45 kph
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 3
- Range
- 970, 980, 990
Features

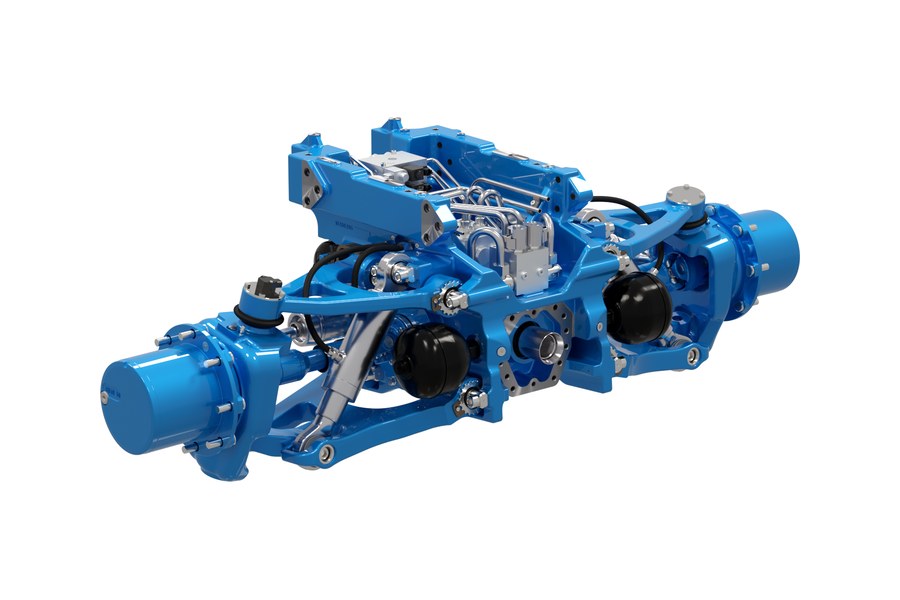

- Full capabilities to simulate, optimize and design independent suspended system
- Mechanical and hydraulic integration as one solution for guarantying superior vehicle performances: traction, comfort and handling
- Virtual tool chain to accelerate time to market
- Modular and scalable solution to fit multiple applications
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 7
- Range
- 770, 770 SHP, M20, M30, M40, M50, M60
Features
- Designed for tractors from 33 to 301 kW (45 to 410 hp)
- Flexible platform assembled from three interchangeable modules
- Cost-effective technology reduces product development lead times
- Geared to meet specific regional and global needs
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 1
- Range
- 733

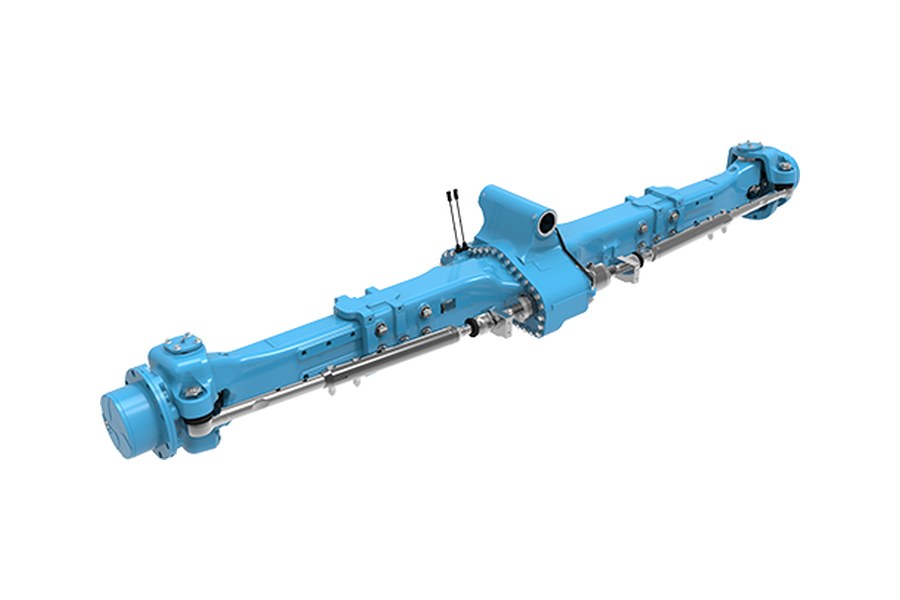

Features
- Ideal for application requiring different flange to flange
- Compact full retract dimension for shipping purpose
- Disconnect option improves traction at low speed and maximize efficiency at high speed
- Optimize lubrication oil quantity, limited to center section and final hub
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 6
- Range
- 113, 114, 115, 116, 125, 126
Features
- Simple, reliable and value engineered design
- Modular in structure and common components shared across multiple axle series
- Designed for 15k Hours B10 component life
- Limited slip differential provide maximum traction in poor ground coefficient conditions
- Maintenance free long life brakes
- Improved efficiency
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 3
- Range
- 730, 740, 750

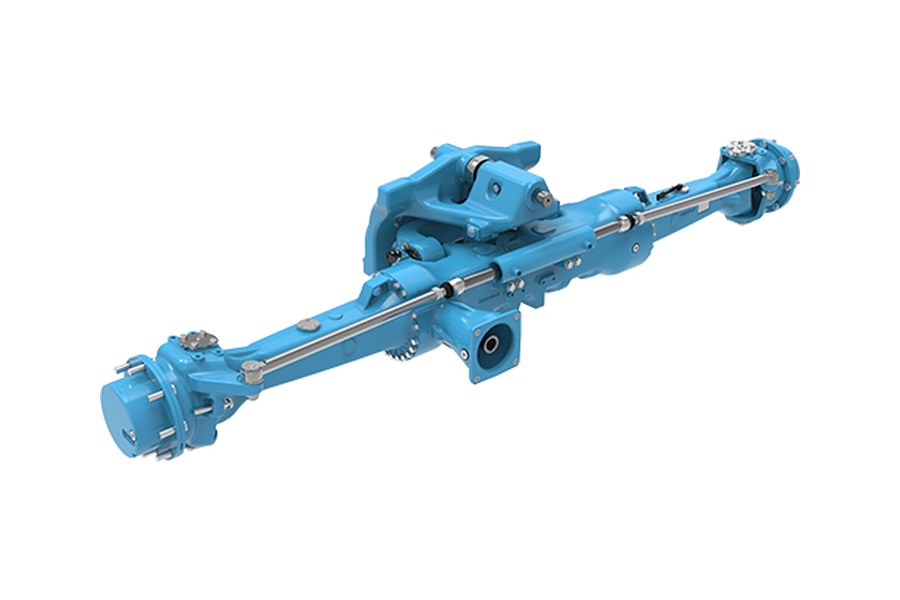

Features
- Active suspension system enhances driving quality and comfort
- Improved maneuverability and traction
- Easy of assembly
- Improved controllability in transit
- Brand
- Spicer (Dana)
- Category
- Axle
- Models in range
- 4
- Range
- 730, 740, 750, 770
Features
- Designed for tractors from 96 to 296 kW (129 to 397 hp)
- Active suspension system
- Improved vehicle control, traction and handling
- Transit speed up to 60 km/h
- Easy of assembly
- Brand
- Spicer (Dana)
- Category
- Transmission
- Models in range
- 6
- Range
- 312, 315, 318, 319, 342, 343
Features
- Delivers smooth operation in wheeled excavators and other earth-moving applications
- Two gear ratios engaged by two independent clutch packs
- Enables the engine to run at its most efficient speed for better fuel economy
- Engineered to ensure traction continuity
- Brand
- Spicer (Dana)
- Category
- Transmission
- Models in range
- 4
- Range
- 358, 360, 367, 368
Features
- 2 speed gearbox hydrostatic transmission
- high power density
- high torque delivery
- 3rd differential with diff lock in the output
- speed sensor
- reliable and precise shifting
- Brand
- Spicer (Dana)
- Category
- Transmission
- Models in range
- 19
- Range
- 24000, 36000, C8000 + 8000, PS09, PSR09, T/TE08, T/TE14, T/VDT12000, T20000, TE08, TE10, TE12000, TE17, TE18, TE30, TE32, TE50, TZL16, TZL18
Features
- Industry-leading powershift transmission, available in both reliable mechanical version to full electronic control system
- 3 or 4 speed fully symmetric gearing for maximum performance in both driving directions
- Remote & Integrated transmissions for installation flexibility
- Complete transmission diagnostics available through APC transmission controller
- Brand
- Spicer (Dana)
- Category
- Transmission
- Models in range
- 2
- Range
- HVT1, HVT2
Features
- Improved fuel efficiency (up to 30%)
- Enables engine to run at its most efficient speed
- Stepless drive
- Better vehicle positioning

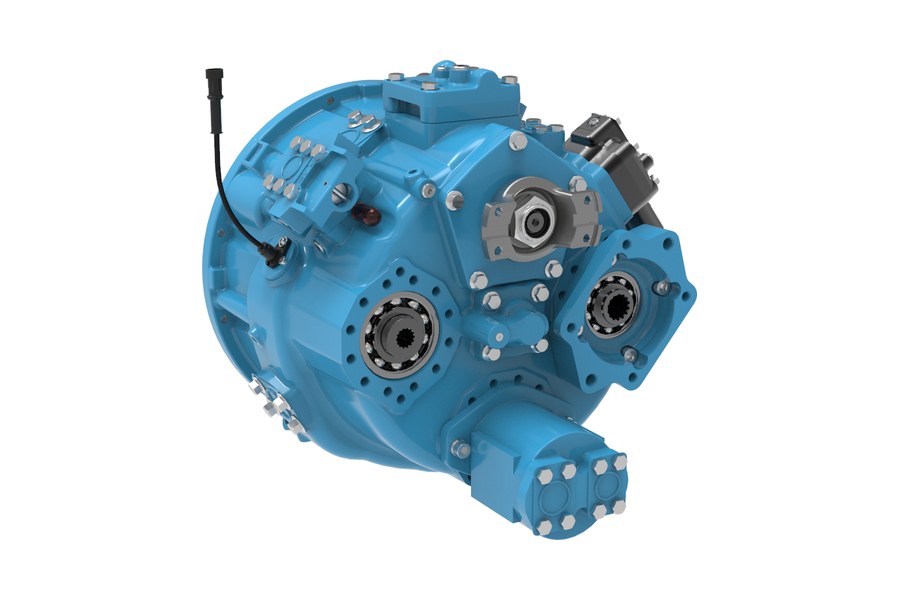

- Brand
- Spicer (Dana)
- Category
- Transmission
- Models in range
- 2
- Range
- CL3000, CL3300
Features
- Designed for reliability in many off-highway applications
- Offer flexible options to match most engine requirements
- Engineered to maximize machine performance and efficiency
- Can be matched to Spicer remote transmissions
- Brand
- Spicer (Dana)
- Category
- Driveshaft
- Models in range
- 8
- Range
- 14C, 15C, 5C, 6C, 7C, 7C with Bearing Support, 8.5C, 9C
Features
- A century of quality and innovation
- Multiple driveshaft and end-fitting combinations
- Ideal for the rigorous demand of most off-highway applications
- Designed for minimal maintenance, longer life and reduced operating cost
- Super-Sealed U-Joints available to prevent severe contaminations

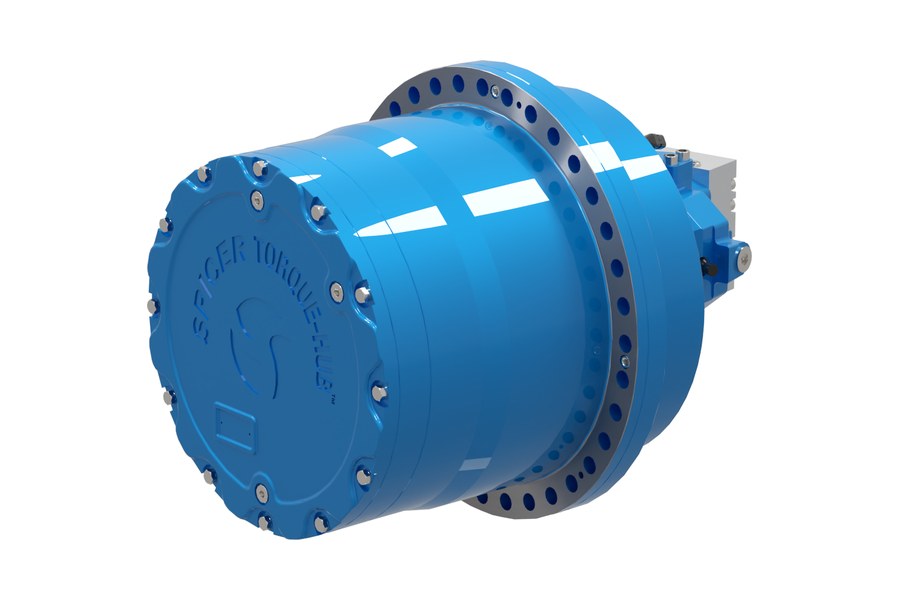

- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 4
- Range
- RCT7102, RCT9083, RCT9103, RCT9133
Features
- Compact product design
- 10kNm torque rating inside 220 mm pilot
- Robust design suitable for low temperature
- Available as Hydraulic motor and gearbox package
- High efficiency gears
- Long gear lifetime
- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 1
- Range

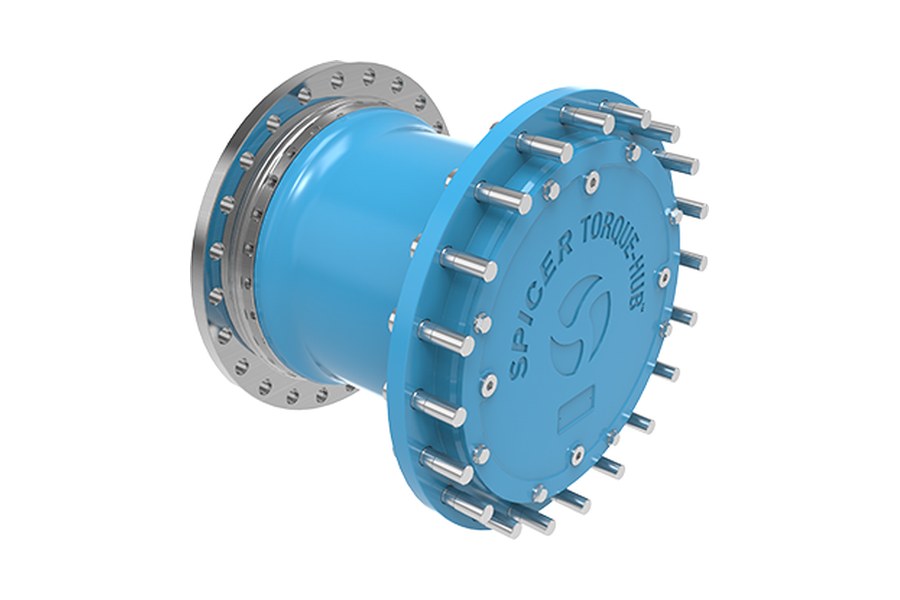

- TH510
Features
- Wheel driven
- Customized solution
- Bevel gear unit at the input for electric motor and/or cardan shaft connection available
- Developed for highly efficient electric drivetrain
- Benefit in cost in the of electric consumption
- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 1
- Range
- RF46
Features
- Wide range of Spicer® wheel drive for self-propelled feed mixers
- One effective solution provider: wheel drive equipped by hydraulic / electric motors
- Robustness, compactness and reliable solution to match the high performances required by agriculture machines
- Parking and dynamic braking system integrated
- Mechanical disconnect device for towing
- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 3
- Range

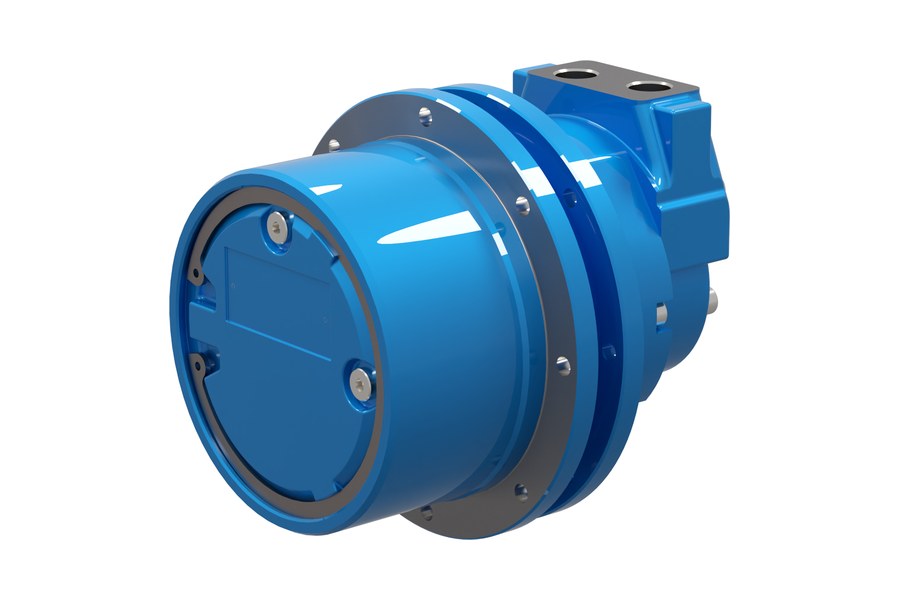

- CTM1009, CTM1016, CTM1022
Features
- Integrated hydraulic motor & gearing system for precise positioning of drilling boom
- Minimised backlash of internal gears stabilizes boom for maximum drilling accuracy
- Highly-resistant to peak shock loads during drilling operations
- Very low output speeds speeds allow very precise positioning of drill head
- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 5
- Range

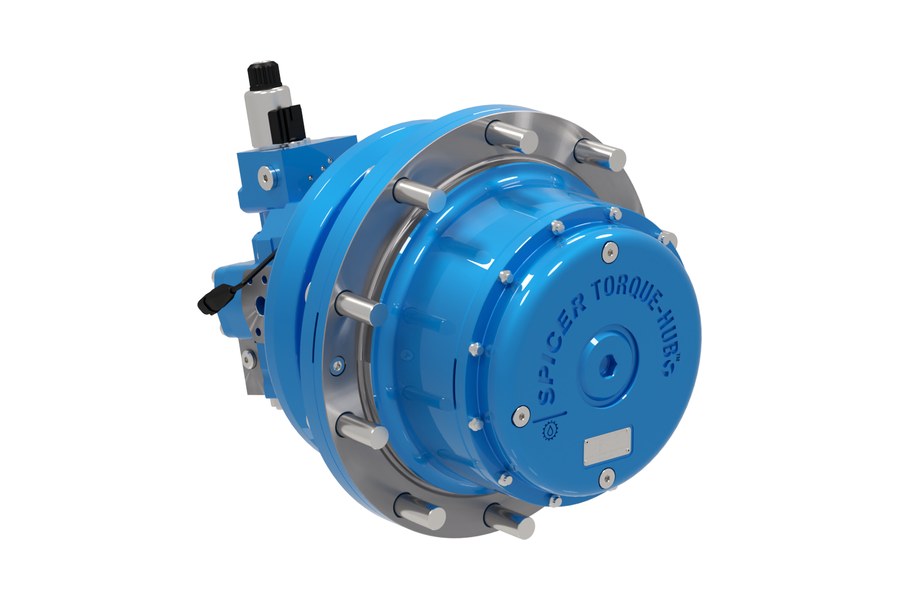

- C016, C021, C024, C030, C036
Features
- Patented service brake to meet on-road stopping requirements
- Heavy duty main bearings and retention for high wheel offsets and side loads
- High speed thermal stability for operating machines up to 60 km/h
- Low maintenance requirements and easy to service

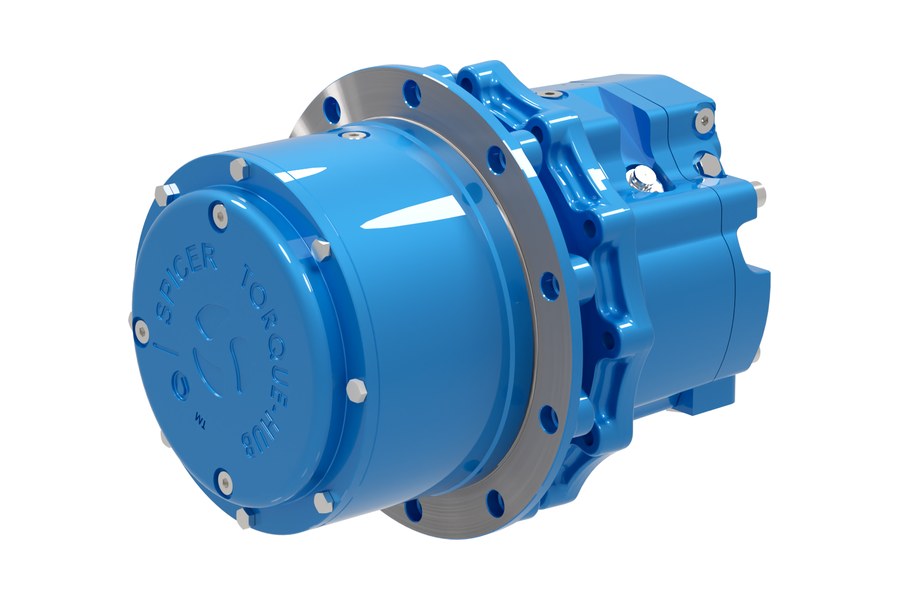

- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 4
- Range
- CT05, CT07, CT11, CT17
Features
- 1 Product range specifically designed for modern high-efficiency Compact Track Loader
- Torque ratings up to 17.000 Nm
- Shift Options: 1-2-Variable Displacement Control
- Small package size with improved start up torque
- Engineered for low maintenance requirements and easy to service
- Enhanced Operator Comfort
- Increased Serviceability: Face Seal, Gears, Parking Brake service while unit is mounted on the machine

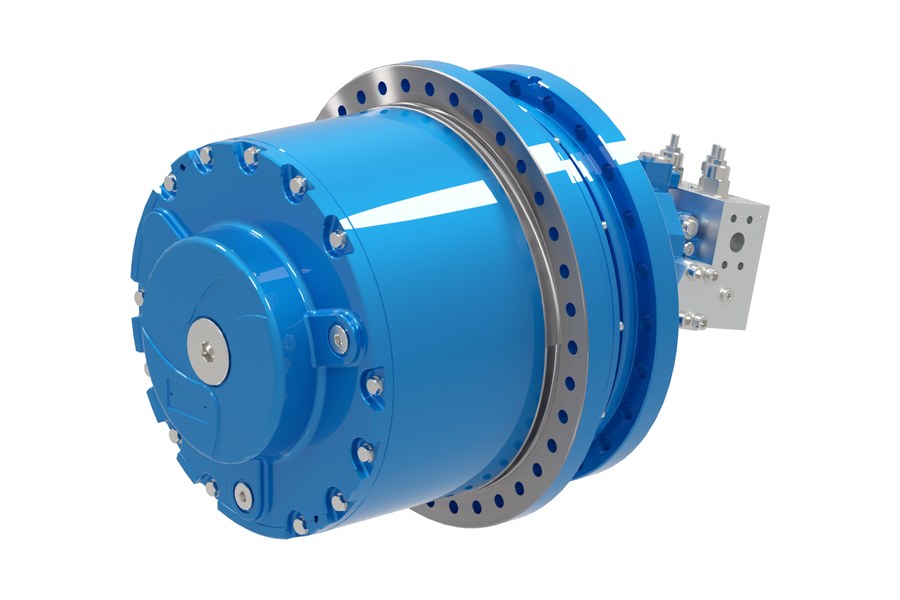

- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 6
- Range
- CTU31100.1, CTU3150.1, CTU3200.1, CTU3300.1, CTU3500.1, CTU3700.1
Features
- Internal multidisc parking brake
- High radial and axial load capacity bearings
- Special sealing system designed for severe environmental conditions
- High strengh material for deliverying robustness and realiability
- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 6
- Range
- 11H, 13H, 18H, 4H, 7H, 8H
Features
- Product range engineered for best-Inclass efficiency
- 18000 Nm delivered torque
- Deliver exceptional maneuverability and proven robustness to final drive
- Low maintenance requirements and easy to service
- Sealing system, hub and spindle designed for severe environmental conditions
- Integrated parking brake to meet safety standards
- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 1
- Range
- HW5
Features
- Heavy duty main bearings and retention for high wheel offsets and side loads
- High speed thermal stability for fast operating machines
- Low maintenance requirements and easy to service
- Brand
- Spicer (Dana)
- Category
- Torque-Hub
- Models in range
- 1
- Range

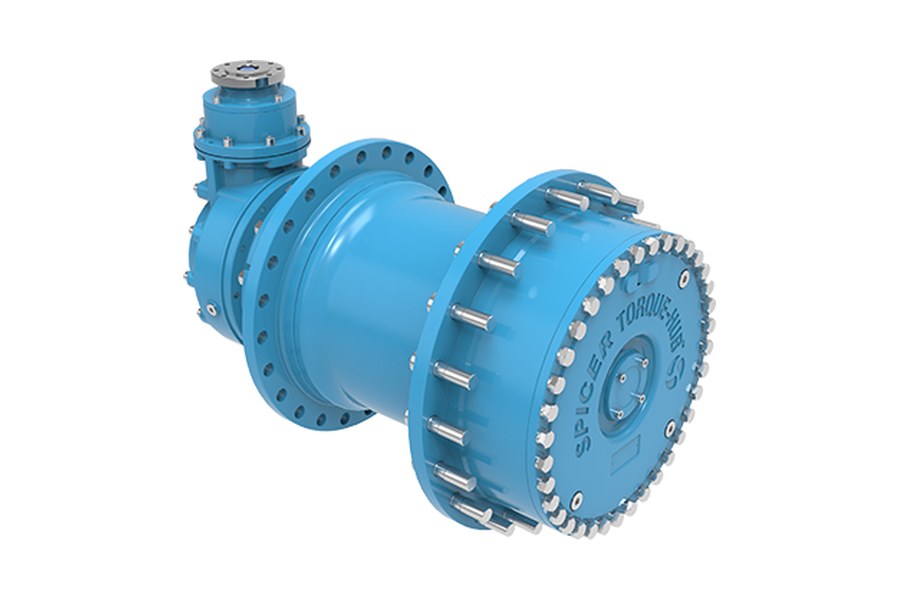

- PHC3850
Features
- Wheel drive
- Customized solution
- Bevel gear unit at the input for electric motor and/or cardan shaft connection available
- Developed for highly efficient electric drivetrain
- Benefit in cost in the of electric consumption
- Brand
- Graziano (Allison Off-Highway)
- Category
- Synchronizer
- Models
- SC 90, CSS 90
- Range
- Graziano Shifting Solutions
Robust and reliable with an optimized design for heavy-duty applications.
- Brand
- Graziano (Allison Off-Highway)
- Category
- Synchronizer
- Models
- SC 184
- Range
- Graziano Shifting Solutions
Modular single- or double-cone designs to accommodate a wide range of applications.

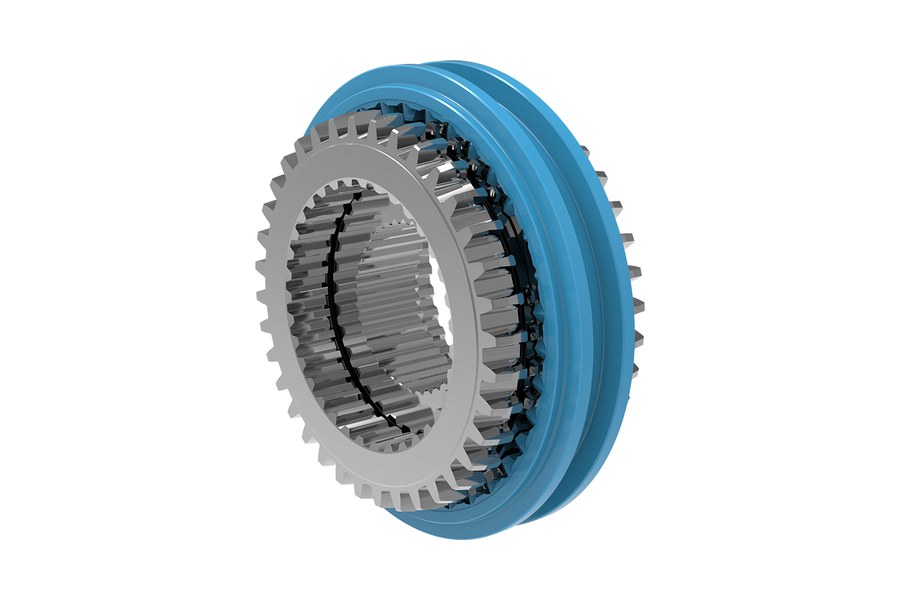

- Brand
- Graziano (Allison Off-Highway)
- Category
- Synchronizer
- Models
- SC 62
- Range
- Graziano Shifting Solutions
Compact single-cone design ideal for compact transmissions.
- Brand
- Graziano (Allison Off-Highway)
- Category
- Synchronizer
- Models

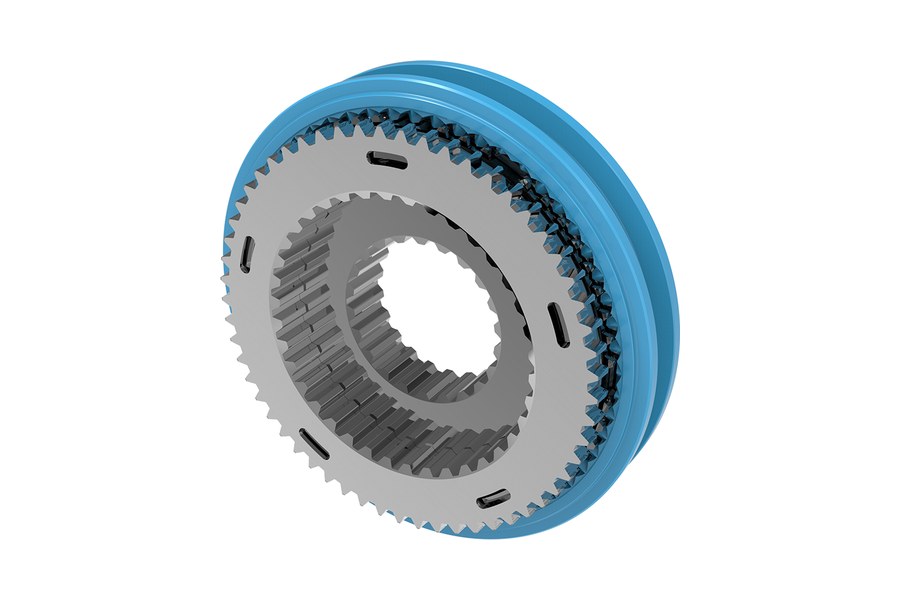

- DC 95, DC 100
- Range
- Graziano Shifting Solutions
Double-cone solution for up to 40% faster synchronization, with higher torque engagement capabilities.
- Brand
- Graziano (Allison Off-Highway)
- Category
- Synchronizer
- Models
- TC 102, TC 110, TC 118
- Range
- Graziano Shifting Solutions
The first triple-cone design for the agriculture market. New friction material for heavy-duty applications, plus outstanding torque capability in a compact radial package.
- Brand
- Graziano (Allison Off-Highway)
- Category
- Powershift clutch
- Models
- Powershift clutches, powershift units
- Range
- Graziano Shifting Solutions
State-of-the-art technologies for clutch housings, including flow forming, grob rolling and broaching with laser or electron-beam welding.
No products match those filters - clear one to widen the search.
Where Dana technologies work
ApplicationsEquipment: Wheel Loaders · Backhoes · Crawler Cranes · Telehandlers
Equipment: LHDs · Mining Dumpers · Tunnel Drills
Equipment: Forklifts · Reach Stackers · Container Handlers
Download the Dana literature
ResourcesExplore technical information on Dana's drivetrain, propulsion and off-highway technologies.
Overview of Dana's drive and motion technologies and their applications across construction, mining, material handling and other off-highway sectors.
Download BrochureDrivetrain components from Dana, AxleTech, Carlisle, Ausco, Kessler and OMCI, with AMC’s powertrain refurbishment centre and service facility.
Download BrochureShare your equipment make, model and component requirement with our team.
Get a RecommendationNeed a part? We'll help you find the right solution.
Dana parts deskIdentify the component you need and share your equipment details with our parts team. Support covers drivetrain component supply, diagnostics, repair and overhaul, with dedicated test-bench capability for Dana/Spicer components.
-
Genuine components - Support for identifying and sourcing the required drivetrain component.
-
Technical assistance - Component-level diagnostics and troubleshooting support.
-
Repair & refurbishment - Specialised repair and overhaul support for drivetrain systems.
Ready to get started
One group, three verticals — use the details below to reach us directly, or pick a department so your message lands with the right team first time.
- Spare parts & serviceinfo@ashokmarketing.com
- Equipmentsales@sbepl.in
- Rentalsceo@amcinfra.com
- Careershr@sbepl.in
